Comparison of aluminum, steel and 304 stainless checker plate

Checker plate: aluminum, steel or stainless?

Diamond-pattern plate — checker plate, tread plate, embossed plate, call it what you like — does two things very well: it gives wet boots grip, and it takes the hits in place of whatever it covers. Running boards, trailer floors, wall guards, ramps: it's the anti-slip material par excellence.

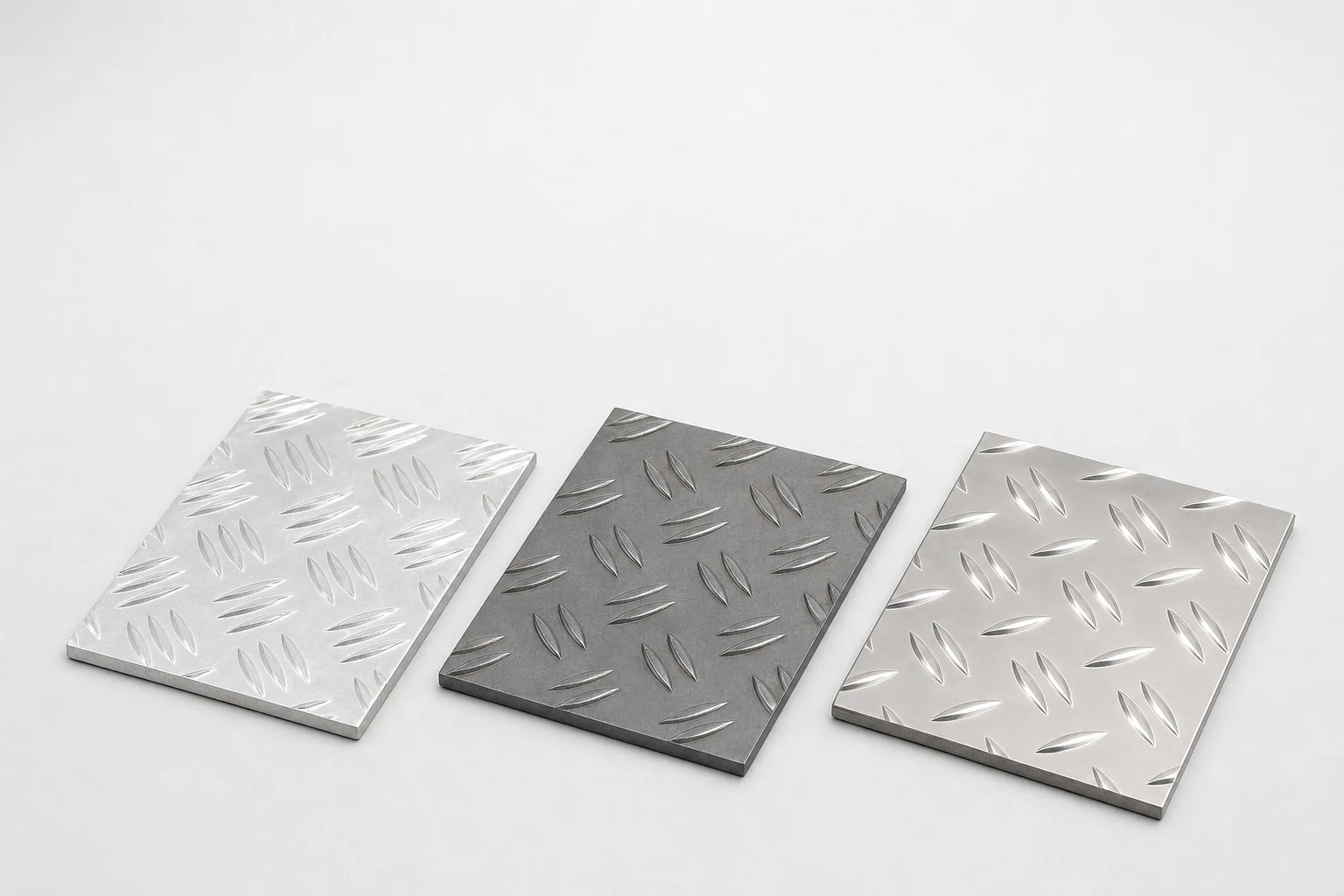

Laseo offers it in three metals — 3003-H14 aluminum, mild steel and 304 stainless — all custom-cut on the fiber laser to a ±0.005″ tolerance, up to 44″ × 30″. The right choice comes down to three questions: how much weight can you tolerate, what environment will the part face, and which operations (bending, tapping, countersinking) does your project require?

Short answer: on a vehicle, choose aluminum (three times lighter). On a shop floor, choose steel (rigid and economical). In a salty, high-pressure-washed or food environment, choose 304 stainless. The details — and the exceptions — follow.

The three checker plates in one table

Criterion 3003-H14 aluminum Mild steel 304 stainless
Weight in 1/8″1.810 lb/ft²4.884 lb/ft²5.146 lb/ft²
Density169 lb/ft³490 lb/ft³494 lb/ft³
Rusts?NoYes — needs protectionNo
Thicknesses offered1/8, 3/16, 1/4″1/8, 3/16, 1/4 and 3/8″1/8, 3/16, 1/4″
BendingYes (3 thicknesses)Yes, except 3/8″Yes (3 thicknesses)
TappingYesYes (including 3/8″)No
Countersinking (flat-head screws)YesNoNo
Dimpling1/8″ only1/8″ only1/8″ only
FinishesAnodizing, powder coatingPowder coatingPowder coating

Weights and densities taken from our data sheets. The stated thickness is the base thickness, without the pattern relief. All plates are of Canadian origin, fiber-laser cut.

Aluminum: the featherweight

At 1.810 lb/ft² in 1/8″, a sheet is a one-person lift and barely adds weight to a vehicle. It never rusts — road salt slides right off — and it's the only one of the three that accepts countersinking for flush flat-head screws, on top of tapping and anodizing.

Its limit: less rigid than steel at equal thickness. For a floor, plan on closer supports or step up to 3/16 or 1/4″.

Full data sheet — aluminum checker plate →

Steel: the workhorse

The classic industrial floor. It's the only one of the three offered in 3/8″ for truly heavy loads, and it taps in every thickness. Rigid, impact-tolerant, it's usually the most economical option per square foot.

Its Achilles' heel: it rusts. Plan on powder coating — offered on all four thicknesses — or accept the shop patina. Note that 3/8″ does not bend.

Full data sheet — steel checker plate →

304 stainless: bulletproof and clean

As heavy as steel, but rustproof and easy to sanitize: it's the choice for commercial kitchens, docks and corrosive environments where aluminum would lack ruggedness. It shrugs off high-pressure washing and chemicals.

The trade-off: neither tapping nor countersinking is offered on this plate — plan on through-holes and through-bolted hardware. It's also the most expensive of the three.

Full data sheet — 304 stainless checker plate →

Which material for which project?

Running board, truck bed, trailer or van floor

Verdict: aluminum. On a vehicle, every pound costs fuel and payload — and aluminum weighs about a third of steel (1.810 vs. 4.884 lb/ft² in 1/8″). Zero rust despite winter road salt, and bending lets you form edges and returns in a single piece.

Shop floor, industrial stair treads, heavy-duty ramp

Verdict: steel. On the ground, weight becomes an advantage: the plate stays put and resists carts and dropped tools alike. The 3/8″ — exclusive to steel — covers extreme cases. Have it powder coated to block rust, in a safety color if desired.

Seaside, daily pressure washing, food processing

Verdict: 304 stainless. Where painted steel would eventually chip and rust, stainless stays sound under hot-water jets, detergents and salt. Its non-porous surface sanitizes easily — a must around food.

Frequently asked questions about checker plate

Can checker plate be bent?
Yes. CNC bending is offered on all three materials in 1/8, 3/16 and 1/4″ — the only exception is 3/8″ steel, too thick for the press brake. We prefer to bend with the pattern on the outside of the bend. In 1/8″, bends go up to 130° (aluminum) or 120° (stainless); from 3/16″ up, count on 90° maximum.
Which thickness should I choose for a trailer floor?
It all depends on the structure underneath. On closely spaced cross members, 1/8″ is enough for foot traffic; for rolling loads (ATV, snowmobile, cart) or longer spans, step up to 3/16 or 1/4″. In steel, 3/8″ exists for the most severe loads, but it doesn't bend — reserve it for flat panels.
Does the pattern relief interfere with laser cutting?
No. The fiber laser cuts checker plate to the same ±0.005″ tolerance as smooth sheet. Just remember that the nominal thickness refers to the base without the pattern — the diamonds add on top. Draw your parts as you would for flat sheet; we handle the rest.
How do I fasten the plate with flush flat-head screws?
Through countersinking — offered only on aluminum checker plate, in all three thicknesses. On steel and stainless, plan instead on through-holes with button-head or hex bolts.
Can checker plate be painted or colored?
Yes. Powder coating is offered on all three materials — essential on steel to block rust, cosmetic on the other two. Aluminum can also be anodized, which hardens the surface without hiding the pattern.
